Our Products

Fittings, Flanges & Accessories

Pipeline Tube & Casing Limited provides a comprehensive range of fittings, flanges and ancillary items in materials to match the PTCL pipe range as detailed. Stock, ex-mill, or special manufacture delivery basis, available.

Welding Fittings

• Seamless butt weld to ASTM A234 WPB & WPC
• Large diameter butt weld ASTM A234 WPB & WPC welded construction with 100% radiography
• High yield fittings - grades X42 to X70
• Low temperature steels ASTM A420 WPL3 & WPL
• Alloy steel fittings ASTM A234 WP5, WP9, WP11, WP22

Forged Flanges

• Carbon steel to ASTM A105/ANSI B16.5
• Large diameter with dimensions to MSS SP44, API 605, BS 3293
• Flanges acc to ASTM A105/API 6B classes 5000, 10000, 15000
• High yield steel grades F42 to F70
• Low temperature to ASTM A350 LF2 & LF3
• Alloy steel to ASTM A182 F1, F5, F9, F11, F22
• Orifice flanges to ANSI B16.36
• Line blinds & spacers/spectacle blinds
• Special face finishes - smooth, flat face etc.
• Reducing flanges
• Tongue and grooved, RTJ etc.

Threaded & Socket Weld Forged Steel Fittings

• Pressure ratings:- 2000, 3000, 6000 & 9000lb
• Carbon steel to ASTM A105
• High yield grades X42 to X70
• Low temp. steel ASTM A350 LF2 & LF3
• Alloy steel ASTM A182 F5, F9, F11, F22
• Outlet fittings (butt & socket weld, threaded etc.) Weldolet, sockolet, threadolet etc.
• Flanged outlet fittings
• Special End Preparations

Accessories

• Bolts & studbolts
• Gaskets, CAF, spiral wound including asbestos free
• Ring joints

> Back to top

O.C.T.G. Casing & Tubing

Pipeline Tube & Casing Limited supplies a large range of standard and premium joint, casing and tubing. With access to worldwide stocks and first quality independent mills for special production, PTCL can match your requirement and offer a service second to none.

Seamless Tubing

• According to API 5CT
• Upper and non upset ends
• External API round threads
• Grades H40, J55, N80, L80, C90, T95, P110
• Special alloys & stainless steels
• Premium threads Atlas Bradford

Casing Pipes

• According to API 5CT
• External API round threads - short and long type
• API buttress threads
• API extreme line
• Seamless up to and including 13 3/8” O.D
• ERW/HFI welded pipes 6 5/8” to 20” O.D
• Premium threads Atlas Bradford etc.
• Grades H40, J55, K55, N80, L80, C90, C95, T95, P110
• Special alloys and stainless steel

Ancillary Items

• Pup joints
• Stabbing guides
• Wellhead fittings

> Back to top

Stainless Steel & Special Alloys

Pipeline Tube & Casing Limited supplies a large range of standard and premium joint, casing and tubing. With access to worldwide stocks and first quality independent mills for special production, PTCL can match your requirement and offer a service second to none.

Stainless Steel Pipes and Tubes

• Seamless tubes ASTM A213 up to 5” dia.
• Welded tubes ASTM A249 up to 5” dia.
• Seamless & welded tubes ASTM A269-90a
• Seamless & welded pipes ASTM A312
• EFW welded pipes ASTM A358
• Grades - 304/304L/304H* /316/316L/316H* /321/321H* /347/317*/317L* /310*
• Super duplex pre 40

Fittings For Pipes & Tubes

• Welding fittings ASTM A403, seamless & welded
• Threaded & socked weld to ASTM A182 - 3000/6000 and 9000lb ratings
• Outlet fittings - weldolets, sockets, etc.
• Compression fittings single and twin ferrule - grade 316/316L

Forged Stainless Steel Flanges

• Welding neck, slip on, blinds, lap joints, SW & threaded
• 50/300/600/900/1500 & 2500lb ratings
• According to ASTM A182
• Grades to suit pipes as shown

Nickel Alloy Piping & Tubes

• Pipes to -  ASTM B161 - B163/ASTM B163 - B165/ASTM B163 - B167 - B516/ASTM B444/ASTM B619 - B622 - B626
• Fittings to ASTM B366 grades to match pipes

> Back to top

Valves

Pipeline Tube & Casing Limited is able to supply a full range of valves for the Oil and Petrochemical Industries. All valves are produced by first class manufacturers approved by the recognised authorities (API etc.).

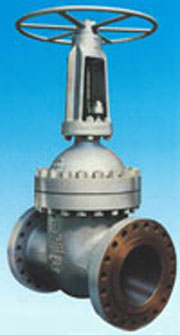

Forged & Cast Steel Valves

• Gate, Globe & Check valves
• API 600, API 602, BS 1873, BS 1868
• 150/300/600/900/1500/ 2500ib ratings
• Flanged, butt weld, threaded & socket weld
• Carbon steel - WCB/A105
• Alloy & Low temp steels
• Stainless steel & high alloys

Ball Valves

• One, two and three piece construction
• End, side and top entry
• Carbon alloy & Stainless steel
• Flanged, butt weld, threaded & socket weld
• Firesafe BS 6755/API 607
• Design & testing API 598, BS 5351, ANSI B16.34, BS 6155, API 6D

Plug Valves

• Lubricated & sleeved type
• Cast carbon alloy and stainless steel
• Handwheel & gear operated
• Flanged connections
• Designed to API 598, ANSI B16.34
• Testing to API 598, API 6 D, ANSI B16.34

Butterfly Valves

• Carbon & stainless steel
• Handle and gear operated
• Wafer type
• Flanged high performance
• 150/300 & 600lb rating
• Seats & seals to order including Buna, Viton, EPDM etc.

> Back to top

Plastics

Pipeline Tube & Casing Limited is able to supply a wide range of plastic products is available and a full fabrication service is provided by our associate company Arel Plastics.

Plastics - Piping & Tubing

• RTRP/GRP - glass reinforced plastics epoxy, vinylester, polyester etc. 25 to 3000mm dia. fabrication services available
• ABS & PVC pipes, fittings and flanges
• Polyethylene HD & LD piping systems
• Nylaflow flexible pressure hoses
• Acetal copolymer tubes up to 250mm dia.
• Acrylic & polycarbonate tubes
• Nylon 6 tubes up to 600mm diameter
• PVC hose - reinforced & un reinforced
• Polyurethane hose

Plastics - Engineering

• Acrylic & Polycarbonate sheet & rod
• PVC - unplasticised/rigid(UPVC) plasticised - flexible
• ABS
• PTFE
• Polyester (Lylar/Melinex)
• SRBP/SRBF/SRBGF (Tufnol etc.)
• Polyacetal (Delrin)
• Nylon & Nylatron
• Polypropylene & HD Polypropylene
• UHMW Polyethylene
• Nomex, Engraving Laminates, Presspahn
